JX-UC

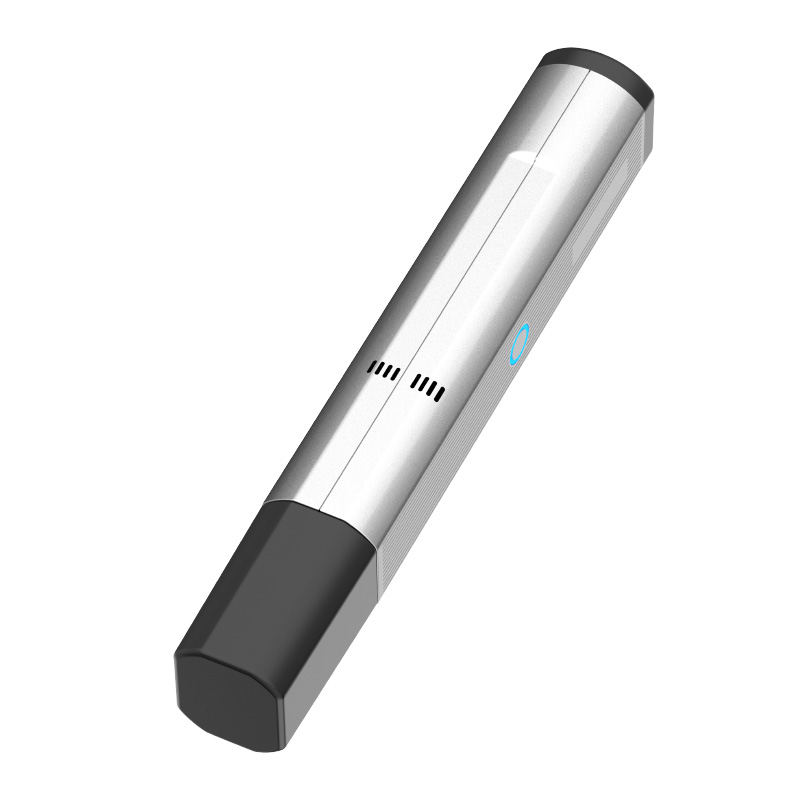

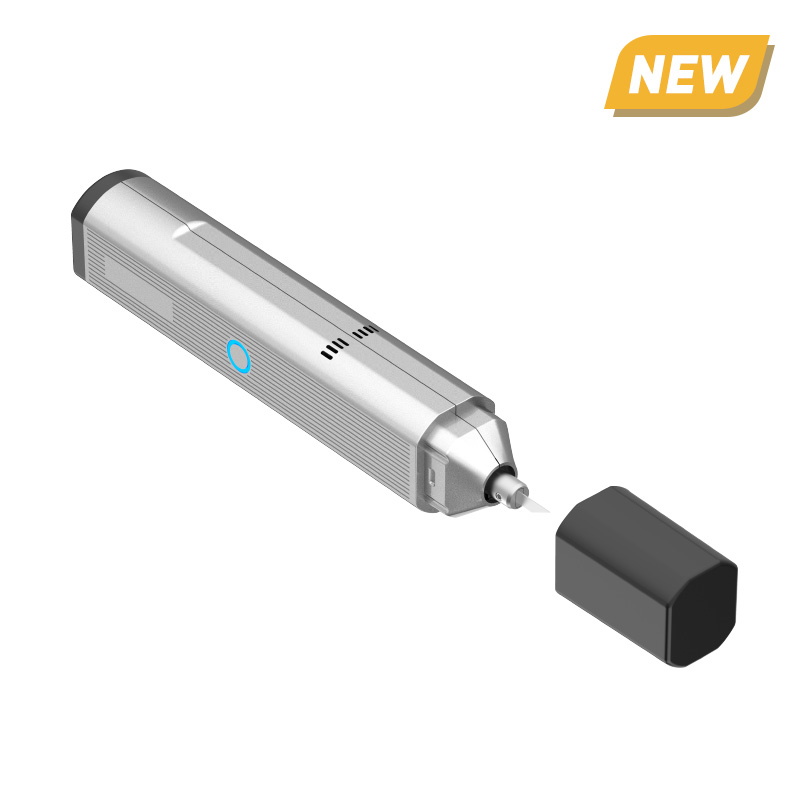

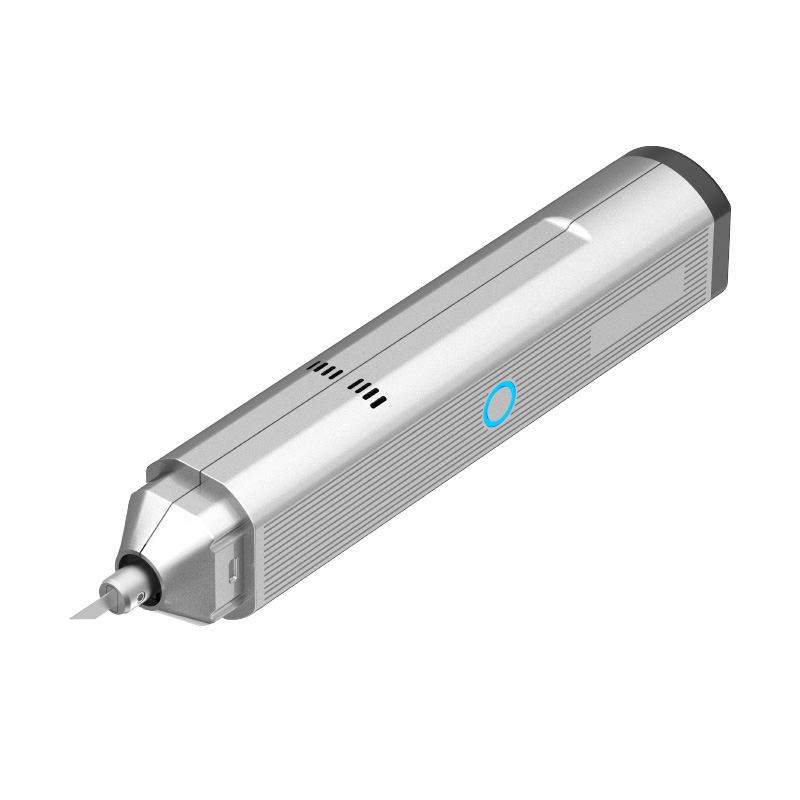

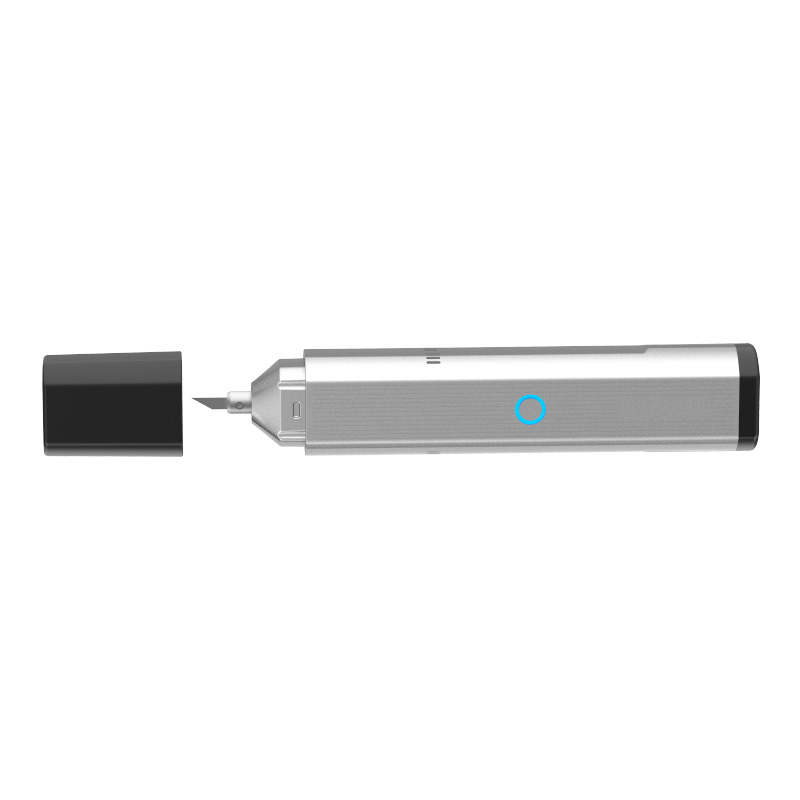

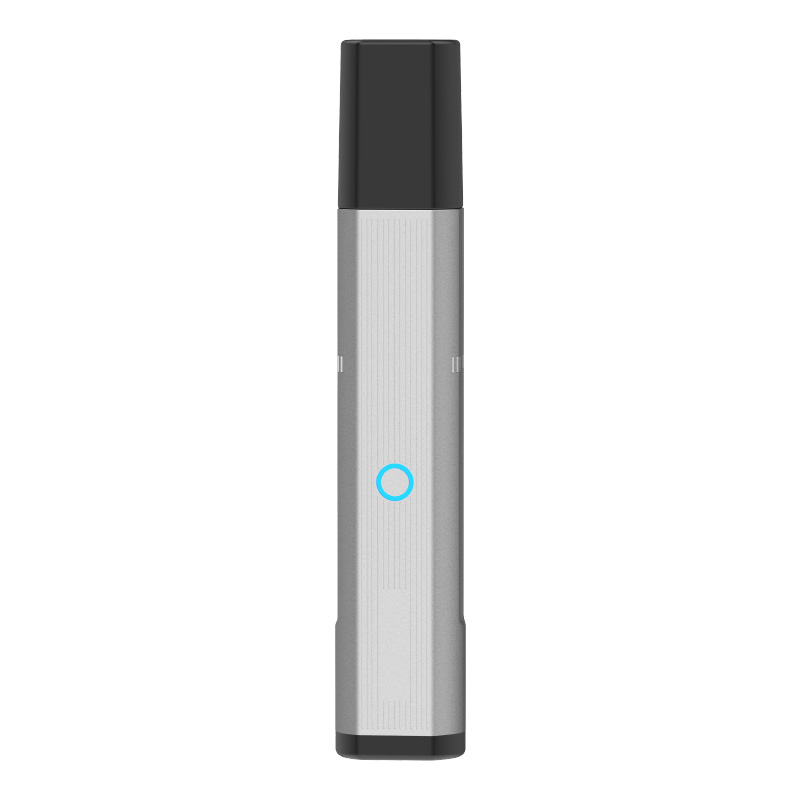

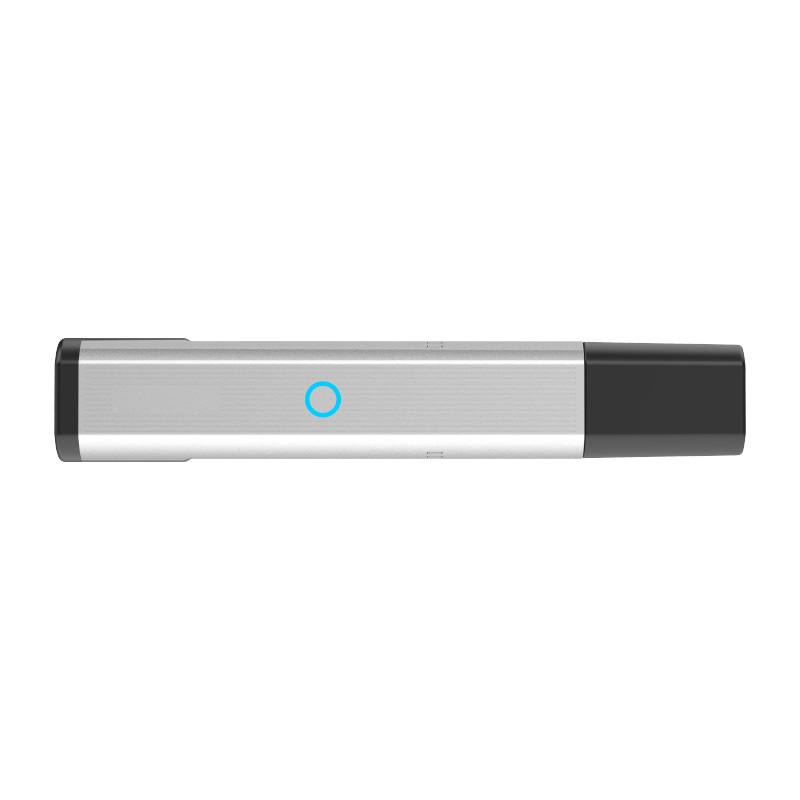

Skymen Ultrasonic Cutter is a compact, lightweight cutting tool designed for precise and efficient cutting across a wide range of materials and creative applications. Operating at high frequency with 36W of power, the ultrasonic cutter uses high-frequency vibration at the cutting head to help make clean, controlled cuts with less manual effort. Ideal for 3D printing, model making, DIY projects, foam cutting, plastic and acrylic processing, leather crafting, and other creative applications, this portable ultrasonic cutting tool is designed for makers, hobbyists, designers, workshops, and professionals who need greater control over detailed cutting work.

Model:
Portable Ultrasonic Cutter
Function:
Ultrasonic cutting
Timer setting:
300s/ 600s/ 900s
Ultrasonic frequency:
36kHz
Ultrasonic power:
36W
Color:
Silver
Label surface color:
-
Heating setting:
-
Heating power:
-
Unit size :
196*29*36mm/ 7.7*1.1*1.4 in
Tank size:
-
Drain value:
-
Material:
ABS

Style:	Silver Customized
SKU:
Availability:

Quantity:
	min order: 200


Inquiry Add Inquiry List

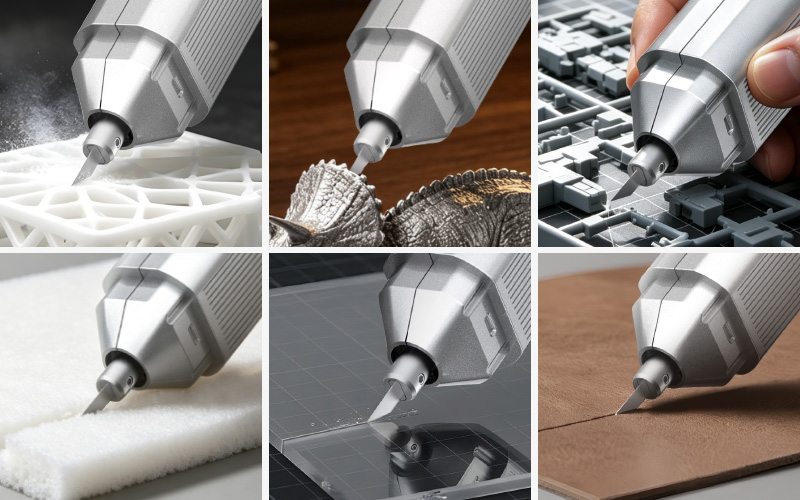

Application

Application Scenario

Introduction

Introduction

Versatile Cutting Tool for DIY and Creative Projects

Designed for more than one application, the ultrasonic cutter can be used for 3D printing, model making, DIY projects, foam cutting, plastic and acrylic work, leather crafting, and other suitable materials. Its compact design makes it a practical tool for makers, hobbyists, designers, and creative workshops.

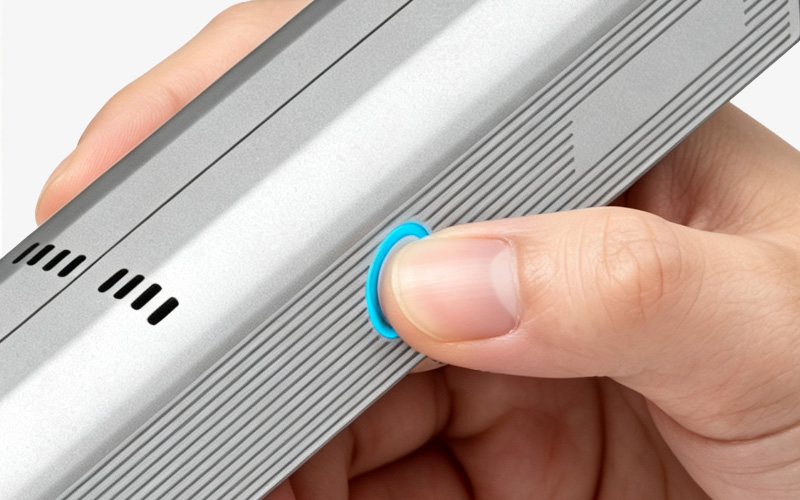

Safe and Comfortable Operation Design

Powered by 36W and operating at a 36 kHz ultrasonic frequency, the cutter delivers high-frequency vibration to the cutting head for controlled and efficient cutting. At just 149g, its lightweight body is easy to hold and maneuver, making it suitable for detailed work and extended DIY projects.

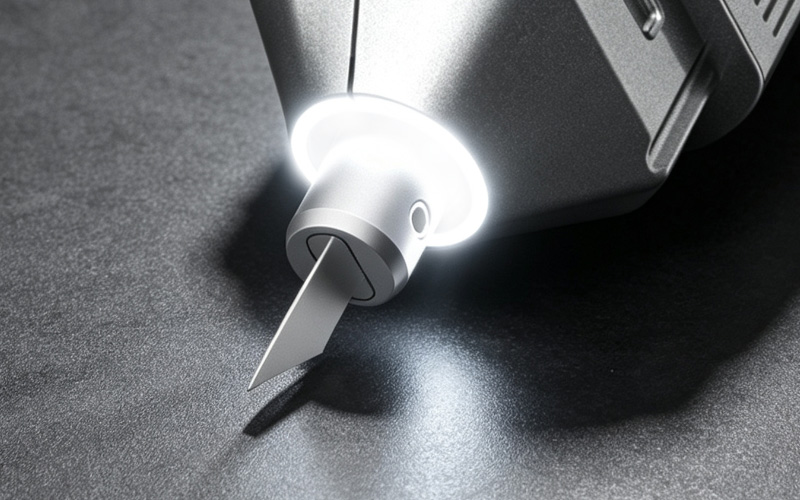

LED Light for Better Cutting Visibility

The built-in LED light automatically turns on during cutting to illuminate the working area. By providing additional light around the cutting edge, it helps users see the material and cutting path more clearly, especially when working on detailed or precision projects.

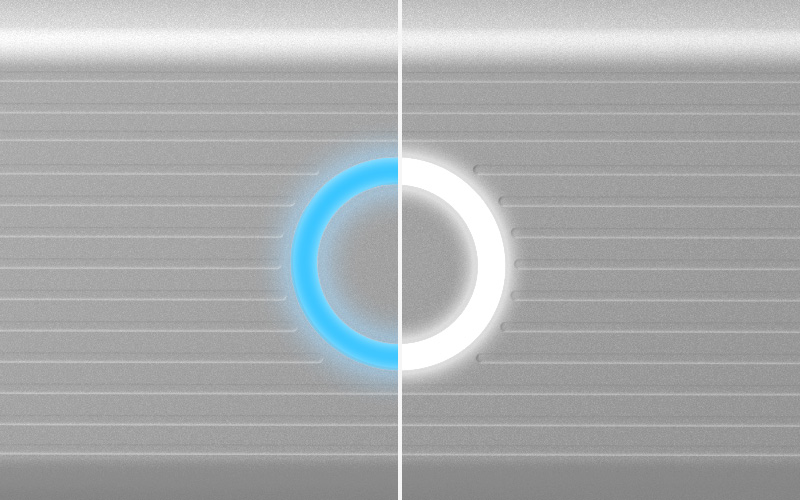

Clear Indicator Light

A dedicated indicator light provides clear visual feedback during operation. The light stays white in standby mode and changes to blue during cutting.

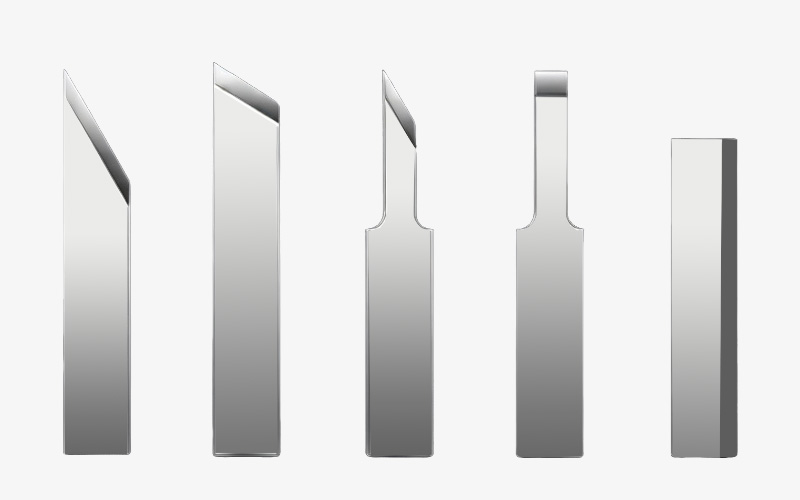

Replaceable Titanium Alloy Cutting Blade

Built with a durable titanium alloy cutting blade, the ultrasonic cutter is designed for precise cutting across different materials and applications. The replaceable head design makes it easy to maintain the tool and switch to a fresh blade when needed, supporting long-term everyday use.

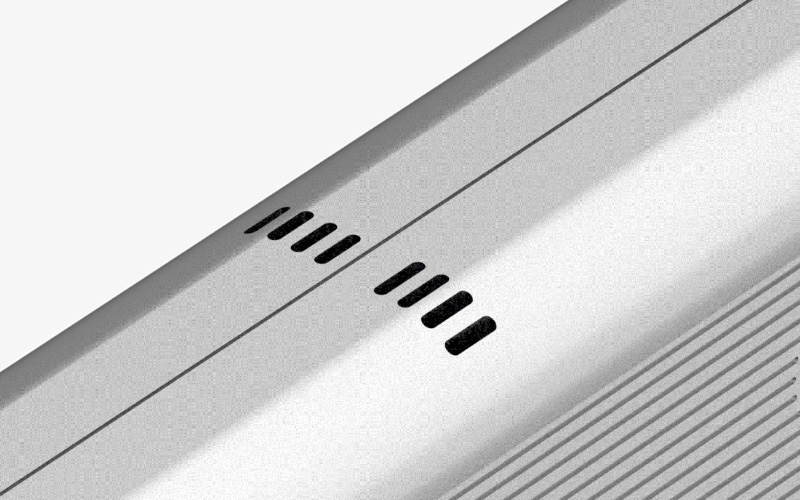

Ventilation for Stable Operation

Strategically positioned ventilation vents help dissipate heat generated during operation, supporting effective thermal management and stable performance during cutting.

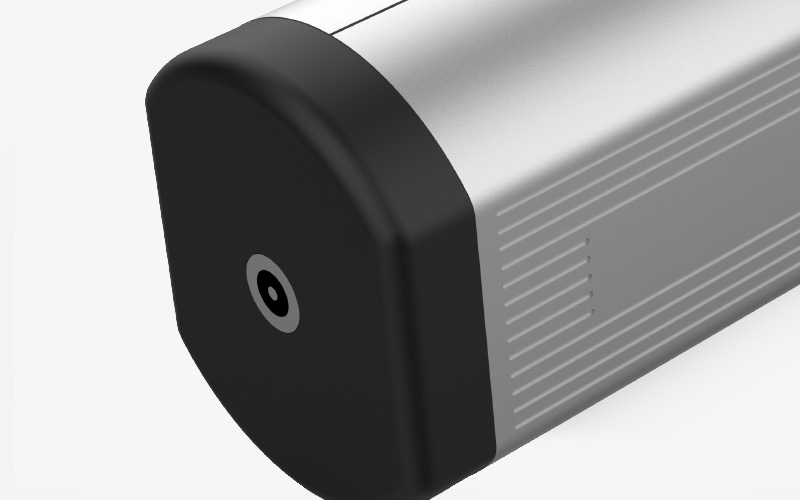

Convenient DC Charging Port

The DC charging port provides a convenient way to power the ultrasonic cutter. Combined with its compact and lightweight design, the cutter is easy to store, carry, and use across different workspaces.

Parameters

Color

Silver

Control Panel

Mechanical button

Function

Ultrasonic cutting

Working Time

5 min

Ultrasonic Frequency

36kHz

Ultrasonic Power

36W

Unit Size

196*29*36mm/ 7.7*1.1*1.4 in

N.W.

149g (excluding adapter)

Power Supply

DC 12V/3A

Material

ABS

FAQs

FAQs

Can the cutting blade be replaced?

Yes. The cutting blade is replaceable for convenient maintenance and continued use. Before replacing the blade, disconnect the power supply and make sure both the blade and the main unit have completely cooled down. Using the supplied hex key, turn the fastening screw counterclockwise to loosen and remove the existing blade. Insert the new blade securely into the slot of the blade holder, then use the hex key to turn the fastening screw clockwise and tighten it firmly. Make sure the blade is securely fixed before reconnecting the power and operating the tool.
How should I maintain the ultrasonic cutter?

Regular maintenance helps keep the ultrasonic cutter in good working condition. After use, switch off and disconnect the power, then allow the blade and main unit to cool completely. Remove any material residue from the blade and surrounding area, and keep the ventilation vents free from dust and debris. Store the tool in a clean, dry place and avoid exposing the main unit or charging port to water or excessive moisture.
Who is an ultrasonic cutter designed for?

The ultrasonic cutter is suitable for 3D printing enthusiasts, model makers, DIY users, hobbyists, designers, crafters, makers, and workshops that require controlled cutting for detailed projects. Common applications include 3D-printed part finishing, model making, foam cutting, plastic and acrylic processing, leather crafting, and other creative projects. It also offers opportunities for brands, distributors, retailers, and e-commerce sellers serving the growing maker, DIY, crafting, and 3D printing markets.
Can Skymen provide ODM customization for this portable ultrasonic cutter?

Yes. Skymen provides flexible ODM customization for brands, distributors, and importers. Depending on project requirements, customization can include product color, brand logo, materials, blades, functional modules, certification support, and packaging solutions. Our team can work with customers to develop product configurations and presentation solutions suited to their target market, brand positioning, and sales channels.
Can I get a sample before placing a bulk order?

Yes. Skymen can provide samples for product evaluation before a bulk order. Customers can first evaluate the standard product's cutting performance, design, and functionality, or discuss customized samples for an ODM project. Sample availability, customization requirements, and lead time can be confirmed based on the specific project and order requirements.
