The Ultimate Guide to Ultrasonic Automotive Parts Cleaning: Professional Methods, Results, and Best Practices

Learn how ultrasonic cleaners remove oil, grease, and carbon from automotive parts. Includes cleaning video demo, comparison photos, tips, and machine selection guide.

Update: 2025-11-18 | Industry Technology

Automotive repair professionals and workshop technicians face a common challenge: removing heavy oil, grease, carbon deposits, and deep-seated grime from engine and mechanical parts without causing damage. Traditional cleaning methods—wire brushing, chemical soaking, manual scrubbing, or high-pressure washing—are not only time-consuming but often fail to remove contaminants from blind holes, internal channels, and precision surfaces.

This comprehensive guide explains why ultrasonic cleaning has become the preferred method in professional repair centers, engine rebuilding shops, and automotive maintenance facilities worldwide. We will cover how the technology works, step-by-step cleaning procedures, equipment selection, safety considerations, and real cleaning results.

What Is Ultrasonic Cleaning

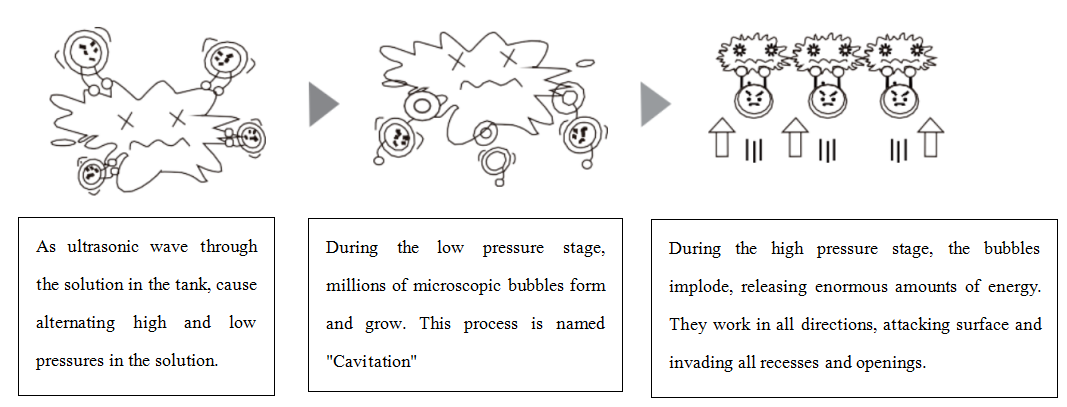

Ultrasonic cleaning uses high-frequency sound waves (typically 20–80kHz) to generate microscopic cavitation bubbles inside a cleaning solution. These bubbles collapse against the surface of the part with significant energy, lifting contaminants such as:

• Motor oil and burned grease
• Carbon deposits
• Rust and oxidation
• Dirt, sand, and road debris
• Metal shavings
• Sludge inside channels or blind holes

Unlike manual cleaning, ultrasonic cavitation reaches every surface, delivering a uniform cleaning result without abrasion.

Why Ultrasonic Cleaning Is Superior for Auto Parts

Deep Cleaning of Internal Features

Channels inside carburetors, injector nozzles, and pistons often accumulate carbon and sludge. Ultrasonic cavitation penetrates areas that tools cannot reach.

Faster Workflow for Workshops

Complex automotive components can be cleaned in 5–30 minutes with minimal labor.

Safe for Precision Parts

High-pressure jets can damage sensors or push water into electrical components. Ultrasonic cleaning avoids these risks entirely.

Compatible with Multiple Materials

Aluminum, steel, brass, plastic, and rubber components can all be cleaned with proper detergent selection.

Enhanced Engine Performance

Cleaner pistons, injectors, and throttle bodies translate into smoother idling, improved fuel efficiency, and reduced emissions.

Real Example: Cleaning Video Demo and Before & After

Cleaning Video Demo: Ultrasonic Cleaning for Engine Piston

Many workshops want to know: Can ultrasonic cleaners really remove carbon from engine pistons? Here is a real example using the Skymen ultrasonic cleaner.

Before & After: Auto Parts Cleaned Using Ultrasonic Technology

To demonstrate real-world results, here are comparison images of fuel injectors, bearings, filters, and small engine components.

Before-and-after of fuel injector cleaning with an ultrasonic cleaner

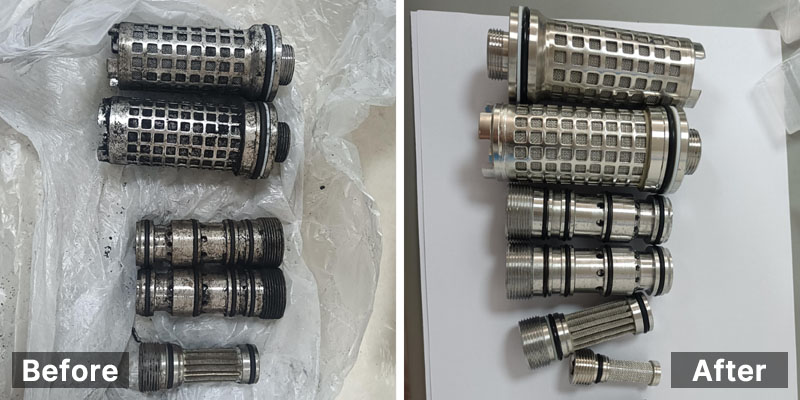

Before-and-after of filter element cleaning with an ultrasonic cleaner

Step-by-Step: How to Clean Auto Parts with an Ultrasonic Cleaner

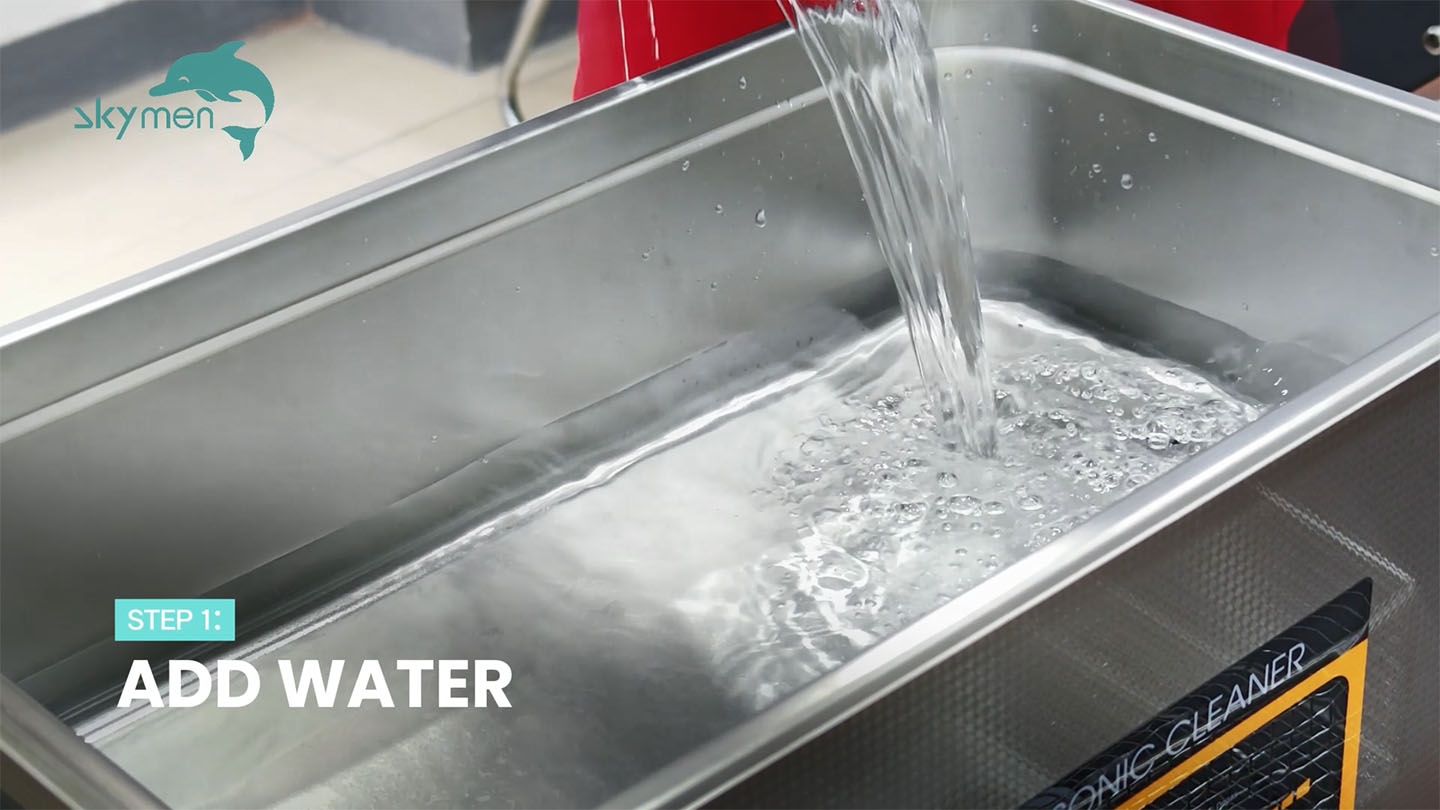

1. Prepare the Cleaning Solution

Mix water with a degreasing detergent. The correct detergent significantly enhances cavitation strength and helps dissolve oil and carbon faster.

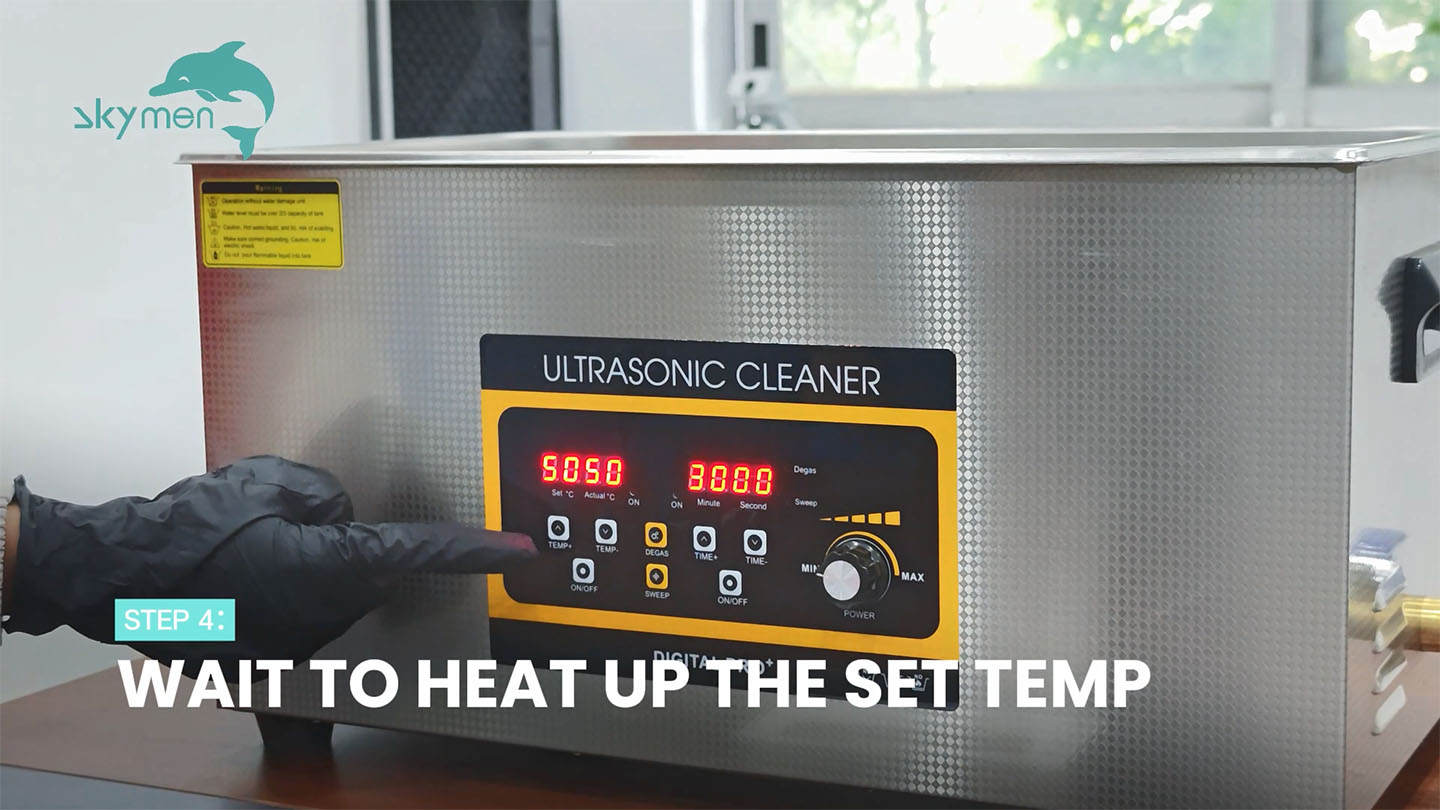

2. Set Cleaning ParametersFive Tips for Maintaining Sterility

Most workshops use:

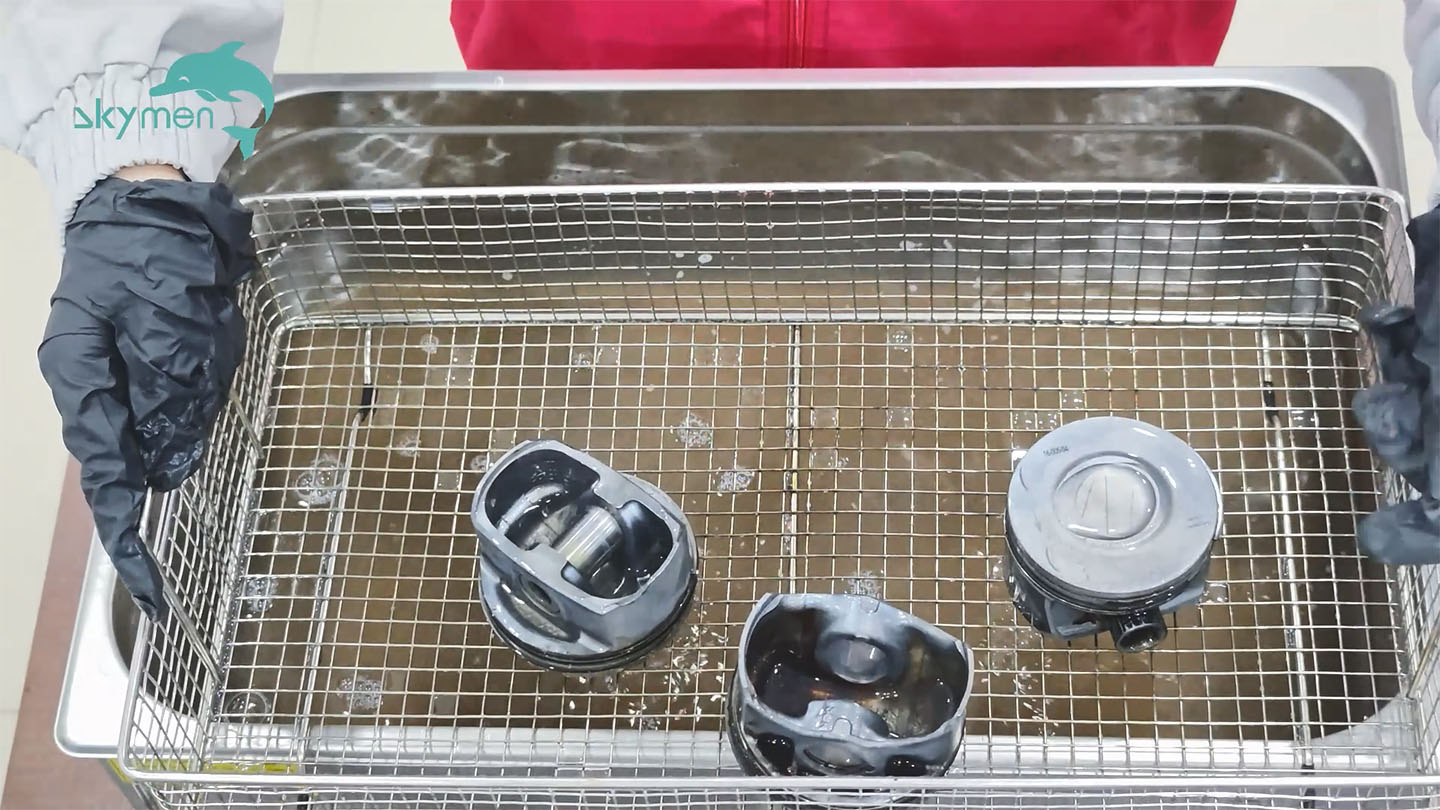

3. Start Cavitation Cleaning

Once the solution reaches the target temperature, turn on ultrasonics and allow the cavitation process to penetrate carbon buildup, oil residue, and debris. The entire part will be cleaned evenly.

4. Rinse Parts

Rinse parts under clean water to remove loosened contaminants and detergent residue.

Which Parts Benefit the Most from Ultrasonic Cleaning

Ultrasonic cleaners are used for dozens of components, including:

• Engine pistons
• Cylinder heads (small sections)
• Fuel injectors
• Spark plugs
• Carburetors
• Throttle bodies
• Bearings
• Gears and shafts
• Brake caliper hardware
• Electronic control boards
• Nuts, bolts, and fasteners

How to Choose the Right Ultrasonic Cleaner for Automotive Applications

1. Capacity & Tank Size

Workshops cleaning multiple pistons, carburetors, or throttle assemblies at once require 10L–38L units. Smaller shops can use 3L–6L systems for injectors, spark plugs, and small hardware.

2. Power & Frequency

Heavy oil & carbon: higher power and heated capability tank.

Skymen's JDS series upgraded the ultrasonic and heated power for stubborn contamination.

Precision components: higher frequency or semi-wave cleaning.

3. Advanced Functions

• Degas: Operating in a cyclic start-stop mode, removing air from the water to prevent metal oxidation after cleaning, increasing the part's shine, and improving cleaning efficiency.
• Semi-wave: Two power settings are available. The power can be halved to achieve a gentle wash, which is suitable for cleaning precision parts. You can choose to turn it on or off depending on your cleaning needs.

Recommended Ultrasonic Cleaners for Auto Parts

Skymen offers a range of benchtop ultrasonic cleaners with capacities ranging from 0.8L to 38L, equipped with various functions to meet different cleaning needs for automotive parts.
